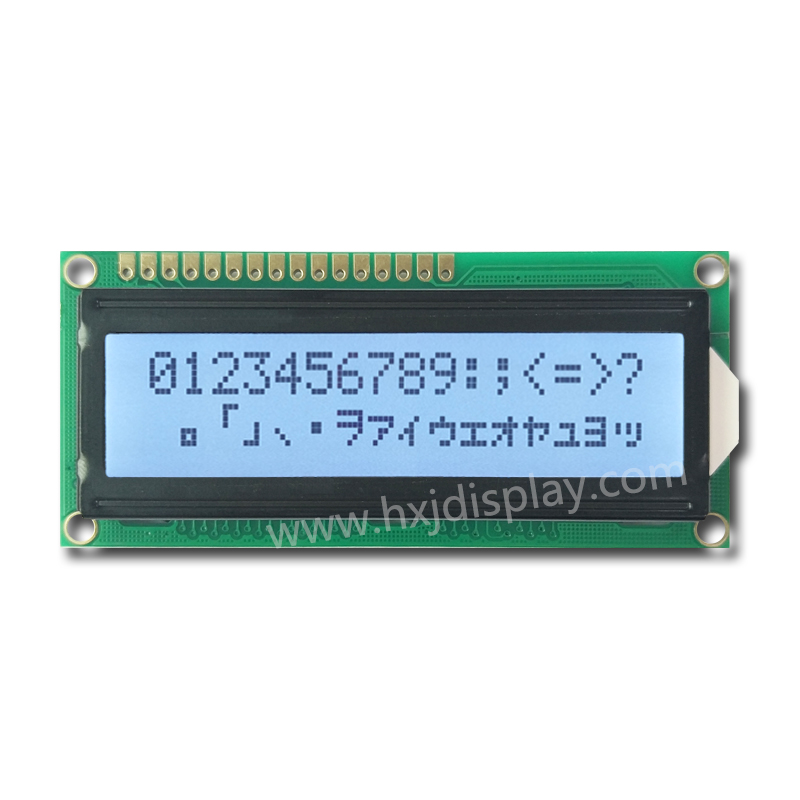

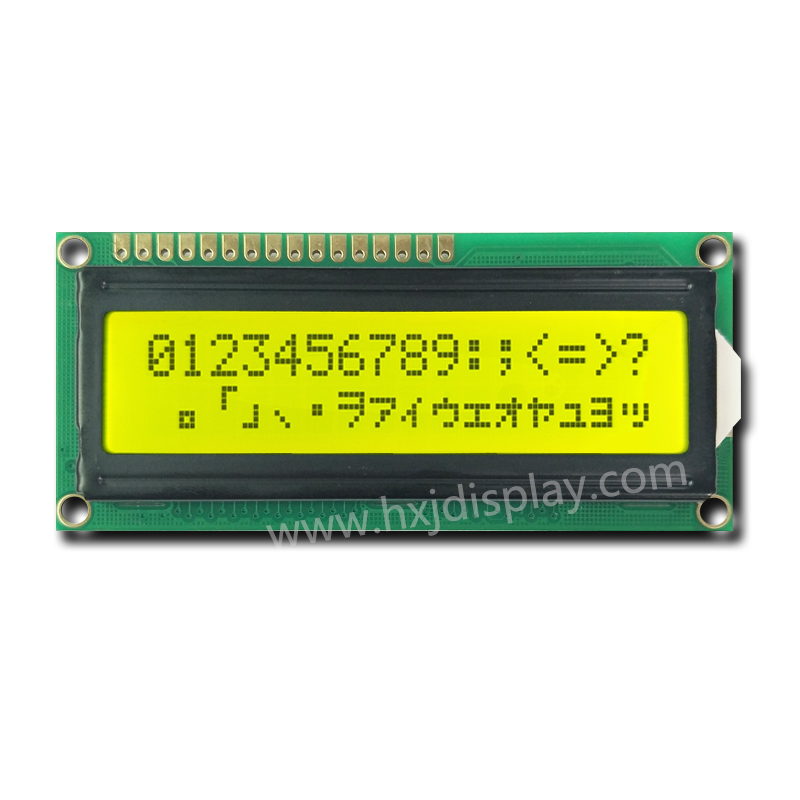

HSM1602C

16×2 lcd display module for arduino

Keyword

Character LCD 16x2 (5 x 8 dots)

● STN-YG / STN-Blue / STN-Gray /FSTN-Gray

● +3.3V / +5.0V power supply

● Viewing Direction: 6H / 12H

● Backlight (Side LED): Yellow-Green / Green / White / Blue / Orange / Red / Amber / RGB

● Fonts: English-Japanese / English-European / English-Cyrillic (Russian)

CONTACT NOW

Product Description
Mechanical Diagram
Production Advantages

Product Description

Module No.:	HSM1602C
Display Type:	16 Characters x 2 Lines
Encapsulation:	COB
Outline Size:	80 x 36 x11.8 mm
Viewing Area:	64.3 x 16 mm
Screen Color:	Yellow-Green/Blue/Gray
Backlight Color:	Yellow-Green/Green/White/Blue/Orange/Red
Backlight::	Side LED
Driver IC:	AIP31066
Connector:	Conductive Silicon Rubber
Pin Number:	16
Interface:	8-bit MPU interface
Driver Condition:	1/16 Duty,1/5 Bias
Viewing Direction:	6 O’Clock
Operating Voltage:	5V/3.3V
Operating Temperature:	-20～+70℃
Storage Temperature:	-30～+80℃

Interface Pin Description

No.	Symbol	Function
1	VSS	Ground (0V)
2	VDD	Supply Voltage for Logic (+5.0V )
3	VO	Contrast Adjustment
4	RS	Data/Instruction Select
5	R/W	Read/Write Select
6	E	Enable Signal
7	DB0	Data Bus
8	DB1	Data Bus
9	DB2	Data Bus
10	DB3	Data Bus
11	DB4	Data Bus
12	DB5	Data Bus
13	DB6	Data Bus
14	DB7	Data Bus
15	LED_A	LED Power Supply + (5.0V)
16	LED_K	LED Power Supply – (0V)

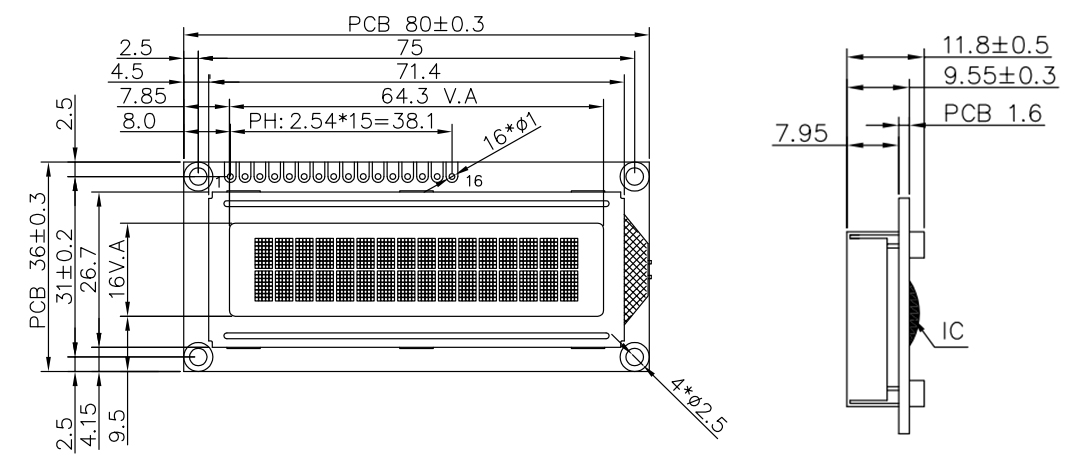

Mechanical Diagram

16x2 lcd display module for arduino-01 (4)

Production Process

Blue color character 16x1 LCD display module (2)

Our Services

1 Reply your inquiry within 24 working hours and reply all your questions with good English communication.
2 Customized design is available. Can provide you video brochure template to make design.
3 Unique solution can be provided to customers by our well-trained and professional staff.
4 After-sell services and technology support is available.
5 Your satisfaction is our pursuit. Only provide high quality LCD and LCD module .
6 Warranty time:1 year
