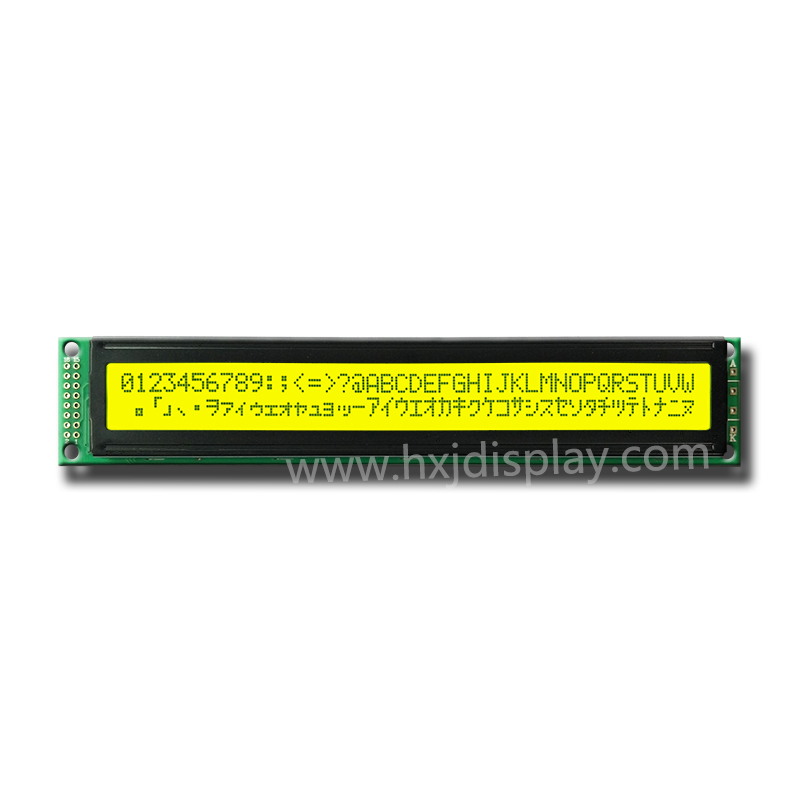

40×2 alphanumeric lcd display module

Character LCD 40×2 (5 x 8 dots)

● STN-YG / STN-Blue / STN-Gray /FSTN-Gray

● +3.3V / +5.0V power supply

● Viewing Direction: 6H / 12H

● Backlight (Side LED): Yellow-Green / Green / White / Blue / Orange / Red / Amber / RGB

● Fonts: English-Japanese / English-European / English-Cyrillic (Russian)

Product Description

Module No.:	HSM4002A
Display Type:	40 Characters x 2 Lines
Encapsulation:	COB

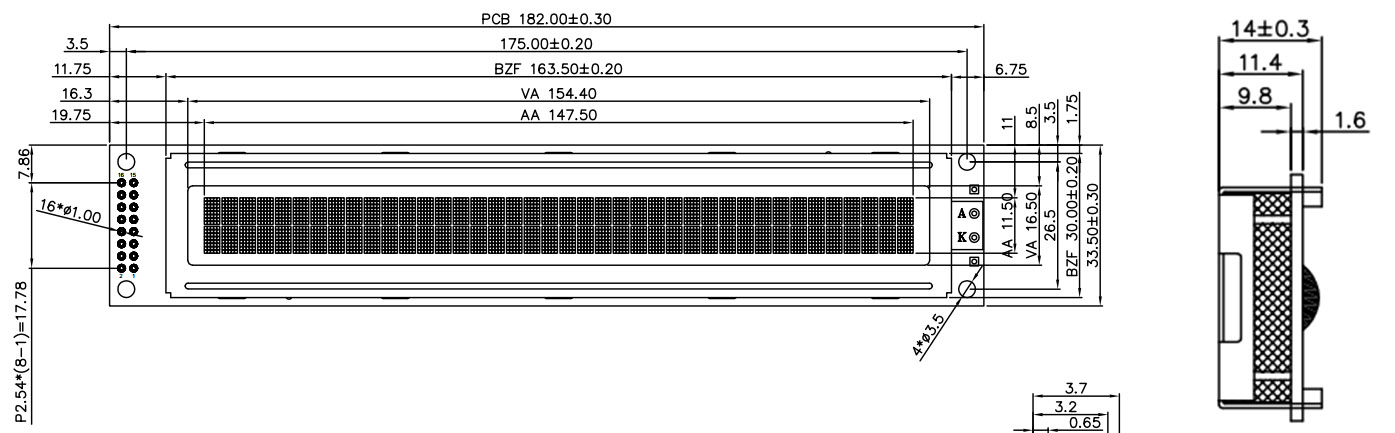

Outline Size:	182 x 33.5 x14 mm
Viewing Area:	154.5 x 16.5 mm
Screen Color:	Yellow-Green/Blue/Gray
Backlight Color:	Yellow-Green/Green/White/Blue/Orange/Red
Backlight:	Side LED
Driver IC:	AIP31066
Connector:	Conductive Silicon Rubber
Pin Number:	16
Interface:	8-bit MPU interface
Driver Condition:	1/16 Duty,1/5 Bias
Viewing Direction:	6 O’Clock
Operating Voltage:	5V/3.3V
Operating Temperature:	-20～+70℃
Storage Temperature:	-30～+80℃
