TFT050B015

5″ 40 Pin 480xRGBx272 ST7257 5 Inch TFT LCD Display

Keyword

● LCD Size: 5″

● Resolution: TN/480×272

● Module size: 120.7(H)x75.8(V)x4.2(D) mm

● Panel Active Area: 110.88×62.83 mm

● Driver IC: ST7257

● Display mode: Normally white

● Interface: RGB

● Pin number: 40

● Warranty: 12 Months

CONTACT NOW

Product Description
Mechanical Diagram
Production Advantages

Product Description

No.	Item	Specification	Unit
1	LCD Size	5″	inch
2	Panel Type	TN	-
3	Resolution	480xRGBx272	Pixel
4	Display Mode	Normally white	-
5	Number of Colors	16.7M	-
6	Viewing Direction	6 O’CLOCK	-
7	Module Size	120.7(H)x75.8(V)x4.2(D)	mm
8	Panel Active Area	110.8(H)x62.83(V)	mm
9	Pixel Arrangement	RGB-stripe
10	Driver IC	ST7257	-
11	Light Source	12 LEDs light
12	Interface	RGB	-

Detail Description

The TFT050B015, a high-quality LCD display from a reputable manufacturer Hua Xian Jing Display Ltd,.

With a screen size of 5 inches and a TN panel technology, this display offers a resolution of 480×272, delivering clear and sharp visuals that are perfect for a variety of applications.

The display is powered by an ST7257 driver IC, which ensures reliable and efficient performance. It also features a normally white display mode and an RGB interface with 40 pin numbers, offering easy and flexible integration with other devices.

The TFT050B015 also comes with a 12-month warranty from the manufacturer, giving customers peace of mind and assurance of the display’s quality and reliability.

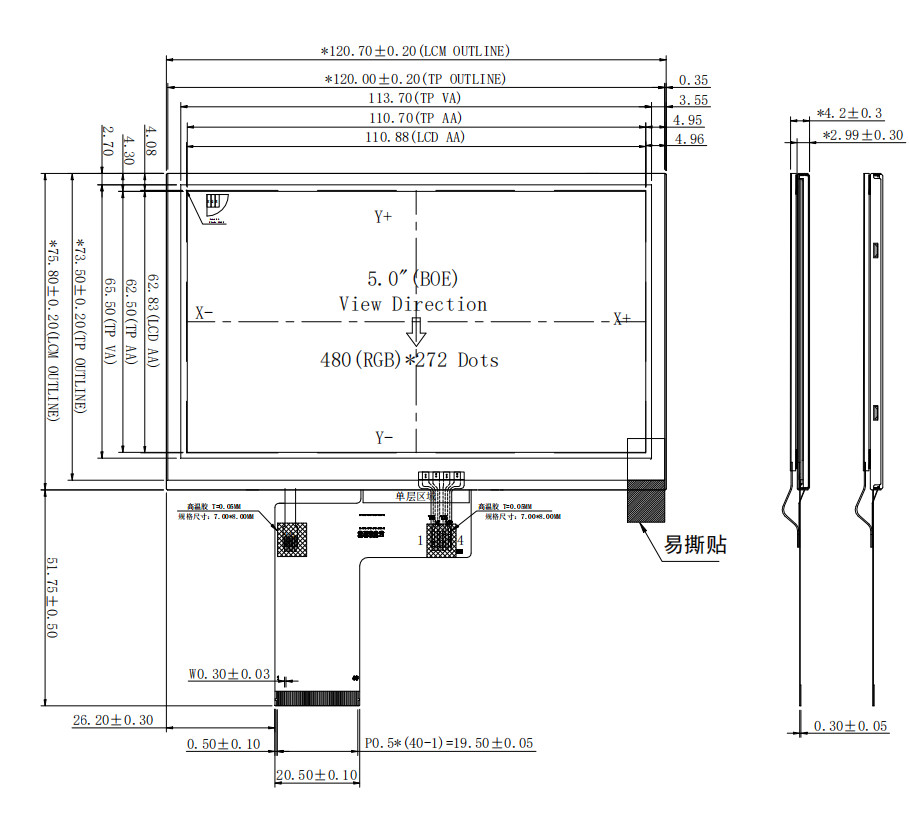

Mechanical Diagram

5 40 Pin 480xRGBx272 ST7257 5 Inch TFT LCD Display (2)

1		16	G3	31	DISP
2	LED A	17	G4	32	HSYNC
3	NC	18	G5	33	VSYNC
4	VCC	19	G6	34	DE
5	R0	20	G7	35	NC
6	R1	21	B0	36	GND
7	R2	22	B1	37	XR
8	R3	23	B2	38	YD
9	R4	24	B3	39	XL
10	R5	25	B4	40	YU
11	R6	26	B5
12	R7	27	B6
13	G0	28	B7
14	G1	29	GDN
15	G2	30	PCLK

If need detailed data sheet of this 5 inch TFT LCD, please contact us.
