HSM1601A-6

Blue color character 16×1 LCD display module

Keyword

Character LCD 16×1 (5 x 8 dots)

● STN-YG / STN-Blue / STN-Gray /FSTN-Gray

● +3.3V / +5.0V power supply

● Viewing Direction: 6H / 12H

● Backlight (Side LED): Yellow-Green / Green / White / Blue / Orange / Red / Amber / RGB

● Fonts: English-Japanese / English-European / English-Cyrillic (Russian)

CONTACT NOW

Product Description
Mechanical Diagram
Production Advantages

Product Description

Module No.:	HSM1601A-6
Display Type:	16 Characters x 1 Line
Encapsulation:	COB
Outline Size:	40 x 36.65 x12.5 mm
Viewing Area:	64.5 x 14.5 mm
Screen Color:	Yellow-Green/Blue/Gray
Backlight Color:	Yellow-Green/Green/White/Blue/Orange/Red
Backlight::	Side LED
Driver IC:	AIP31066
Connector:	Conductive Silicon Rubber
Pin Number:	16
Interface:	8-bit MPU interface
Driver Condition:	1/16 Duty,1/5 Bias
Viewing Direction:	6 O’Clock
Operating Voltage:	5V/3.3V
Operating Temperature:	-20～+70℃
Storage Temperature:	-30～+80℃

Interface Pin Description

No.	Symbol	Function
1	VSS	Ground (0V)
2	VDD	Supply Voltage for Logic (+5.0V )
3	VO	Contrast Adjustment
4	RS	Data/Instruction Select
5	R/W	Read/Write Select
6	E	Enable Signal
7	DB0	Data Bus
8	DB1	Data Bus
9	DB2	Data Bus
10	DB3	Data Bus
11	DB4	Data Bus
12	DB5	Data Bus
13	DB6	Data Bus
14	DB7	Data Bus
15	LED_A	LED Power Supply + (5.0V)
16	LED_K	LED Power Supply – (0V)

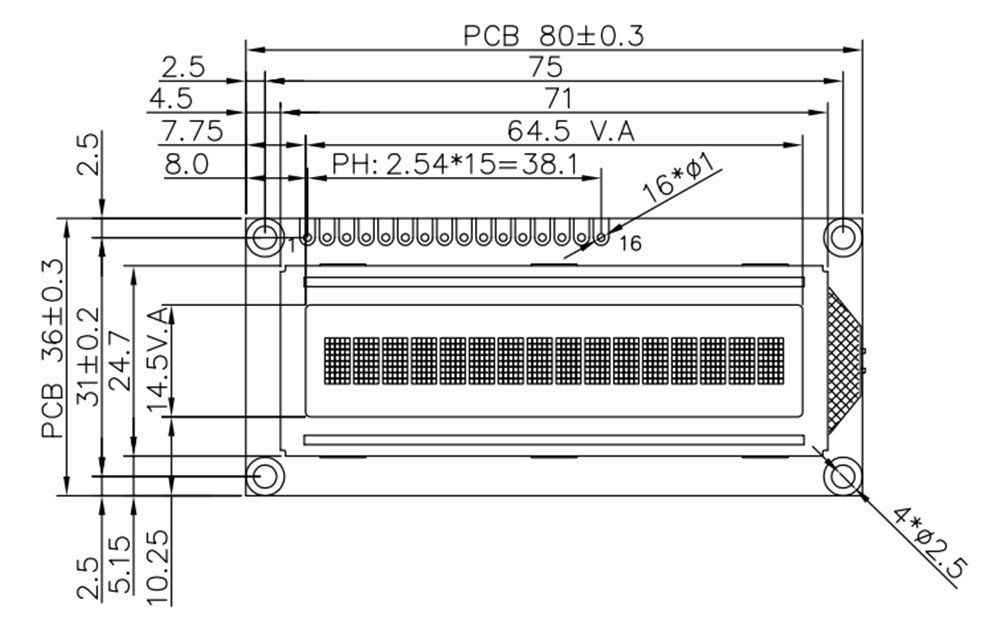

Mechanical Diagram

Blue color character 16x1 LCD display module-01 (3)

Hot Product

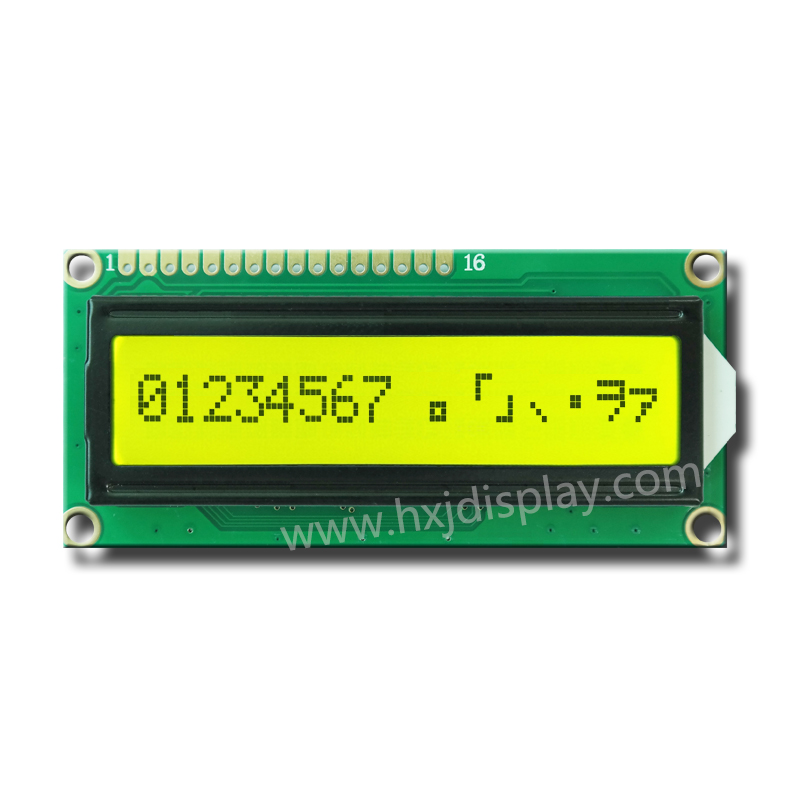

Blue color character 16x1 LCD display module

Production Process

Blue color character 16x1 LCD display module (2)

FAQ

1. Have you ever exported to foreign countries?

We started our international trade at the beginning of 2011,we have exported to Italy, UK, Poland, USA, Russia, Spain, Turkey, Ukraine, French, Colombia, Austria, Australia, Canada, Brazil, India and many other countries.

2. What is the lead time of the products?

Samples in stock will be delivered within 3 days after payment.

Mass production needs 3 to 4 weeks for delivery.

For custom lcd,drawings will begin after payment. The initial samples will be finished within 20 days after the drawing is approved.

3. Payment methods:

For samples: payment in advance.

For mass production: 50% deposit and 50% balance before shipment.

4. What certifications do you have?

ISO,RoHS and CE.

5. What is the MOQ?

It depends on different products. Please keep in touch with sales to confirm the MOQ.

6. How long is the warranty period?

One year.

7. Could we place an order as OEM to produce under our own brand?

Yes, our company accept OEM and ODM.
