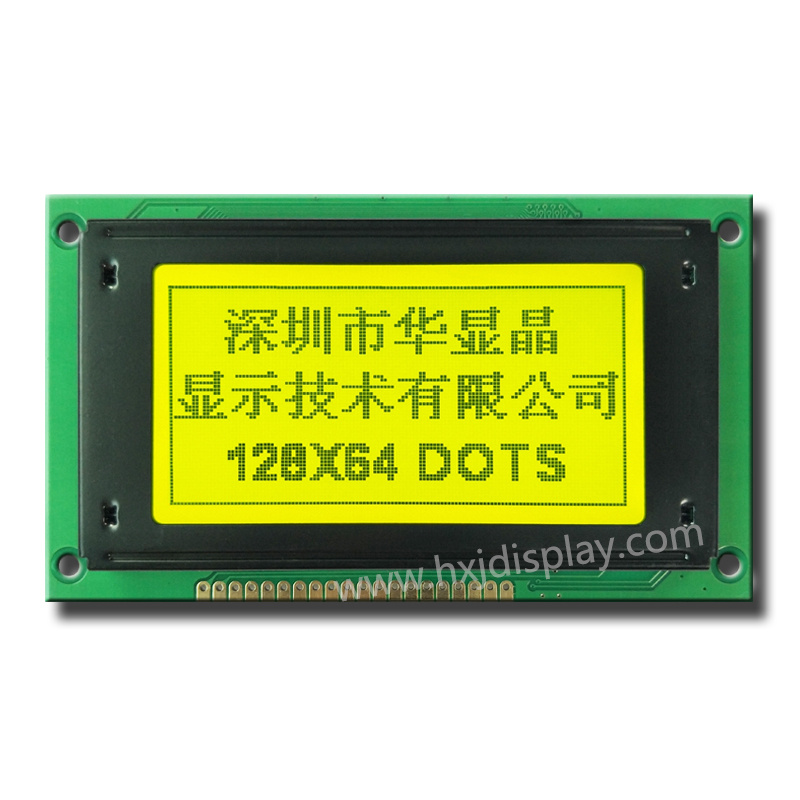

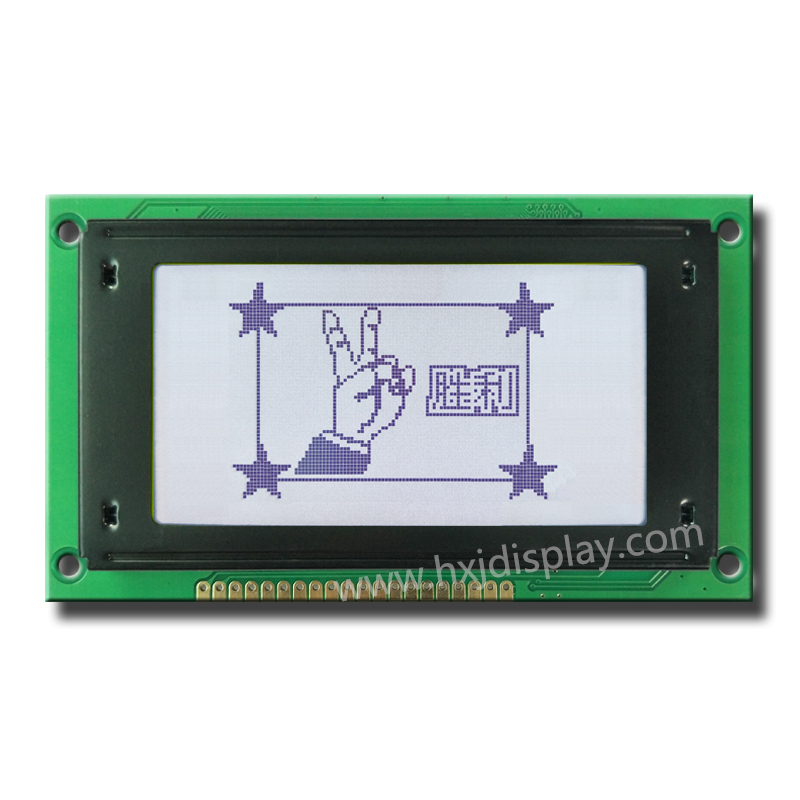

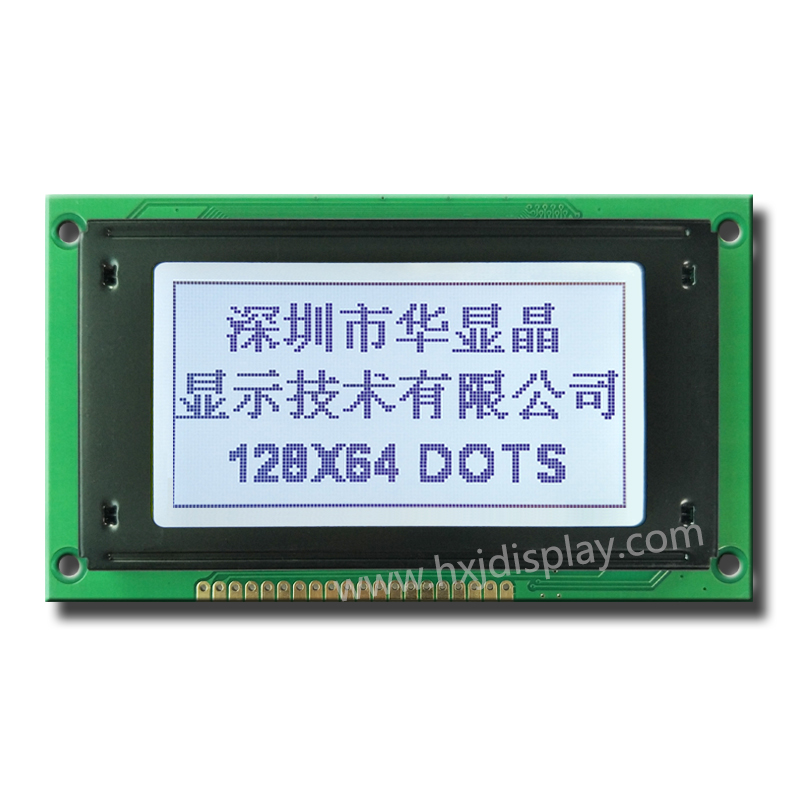

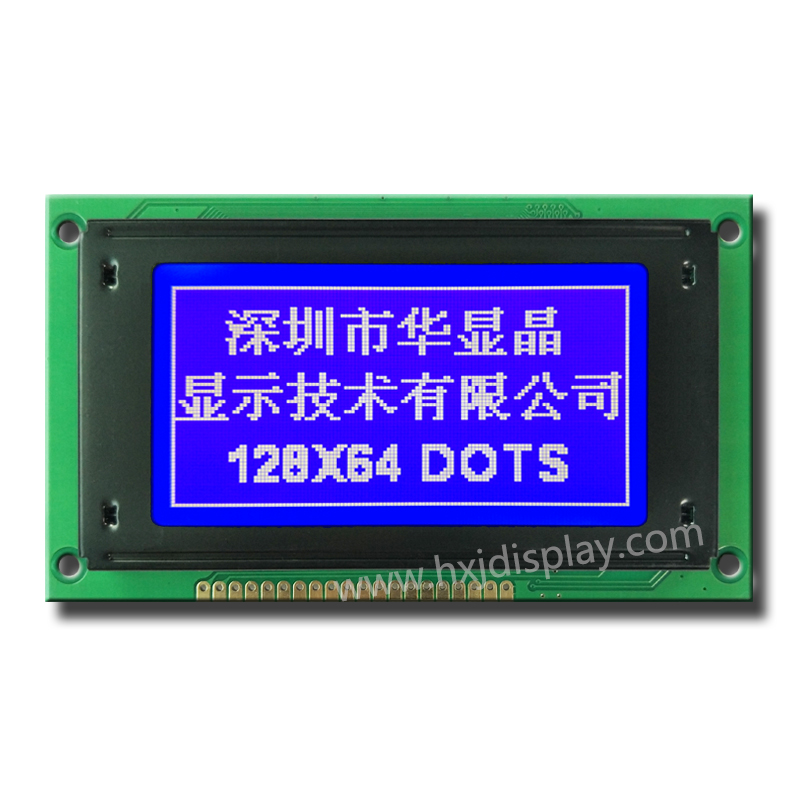

lcd display module 128×64

Graphic LCD 128 x 64 (dots)

● STN-YG / STN-Blue / STN-Gray /FSTN-Gray

● +3.3V / +5.0V power supply

● Viewing Direction: 6H / 12H

● Backlight (Side LED): Yellow-Green / Green / White / Blue / Orange / Red / Amber / RGB

Product Description

Module No.:	HSM12864A
Display Type:	128 x 64 Dots
Encapsulation:	COB

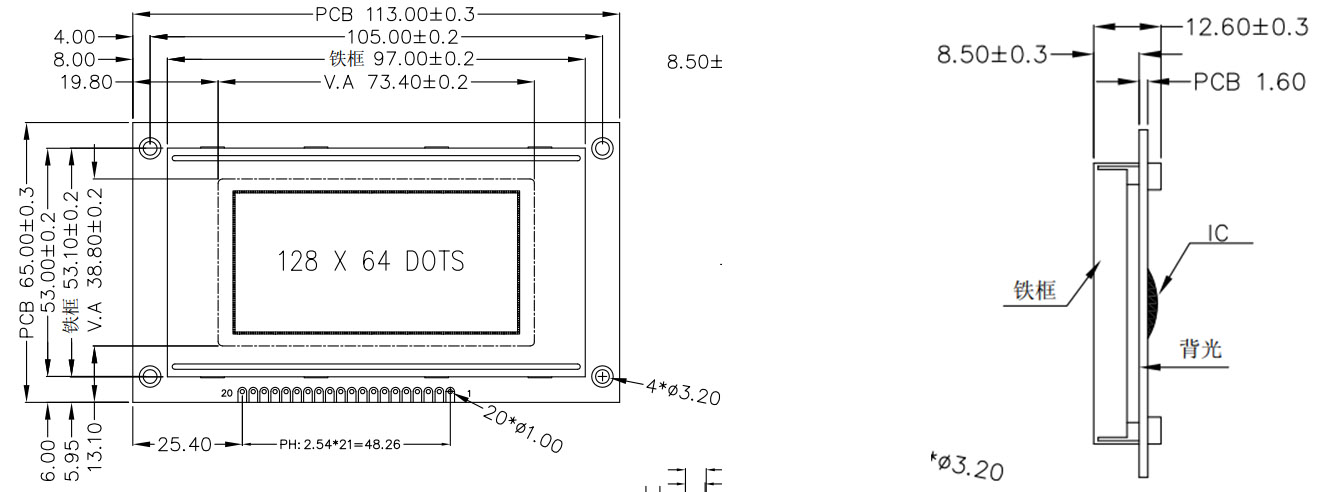

Outline Size:	113.0 x 65.0 x 12.9 mm
Viewing Area:	73.4 x 38.8 mm
Screen Color:	Yellow-Green/Blue/Gray
Backlight Color:	Yellow-Green/Green/White/Blue/Orange/Red
Backlight:	Side LED
Driver IC:	AIP31108
Connector:	Conductive Silicon Rubber
Pin Number:	20
Interface:	8-bit MPU interface
Driver Condition:	1/64 Duty,1/9 Bias
Viewing Direction:	6 O’Clock
Operating Voltage:	5V/3.3V
Operating Temperature:	-20～+70℃
Storage Temperature:	-30～+80℃

No.	Symbol	Function
1	GND	Ground (0V)
2	VDD	Supply Voltage for Logic (+5V )
3	VO	Contrast Adjustment
4	RS	Data/Instruction Select
5	R/W	Read/Write Select
6	E	Enable Signal
7–14	DB0—DB7	Data Bus
15	CS1	Chip Select active “H”
16	CS2	Chip Select active “H”
17	/REST	Reset signal , active “L”
18	VOUT	Output voltage for LCD driving
19	LED_A	LED Power Supply + (5V)
20	LED_K	LED Power Supply -(0V)

1. LCD Screen Material: Glass is main material,Liquid Crystal Display;

2. Display Type: TN,HTN,STN,FSTN,DFSTN,VA;

3. LCD Display Mode: Positive display,Negative display.

4. Polarizer Type: Reflective,Transmissive,Transflective;

5. Connector Type: Metal Pins,electronic conductive rubber,heat-seal connector,FPC;

6. Backlight: Side LED backlight;

7. The ITO thickness normal value: 0.4mm,0.55mm,0.7mm,1.1mm;

8. Viewing Angle: 3 O’clock,6 O’clock,9 O’clock,12 O’clock.
