TFT024B184

2.4″ 240×320 TN TFT QVGA ILI9340X 24 Pin MCU

Keyword

Announcements

1.Do not attempt to disassemble or process the LCD module.

2.Do not make extra holes on the printed circuit board, modify its shape or change the positions of components to be attached.

3.Except for soldering the interface, do not make any alterations or modifications with a soldering iron; Ensure welding temperature at 320 ° C to 350 ° C, the welding time control within the 10 s, welding note don’t stay too long in the same place to avoid scald FPC.

4.Other matters in not clear before use, please contact our staff to guide.

CONTACT NOW

Product Description
Mechanical Diagram
Production Advantages

Product Description

Product Name	TFT024b184
Display Mode	2.4 inch 240×320 TN, 65K color transmissive, normally WHITE
Driver IC	ILI9340X
Viewing Direction	12 o’clock
Luminance	450 cd/m2 typ.
Operating Temperature:	-20°- +70°
Storage Temperature:	-30°- +80°
Outline dimension(mm)	42.72(H)60.26(V)2.3(D)
AA area(mm)	36.72*48.96
Interface Type	24 PIN FPC, MCU 8-BIT Interface

2.4″ TFT Liquid Crystal Displays are color active matrix LCD screen that incorporates an amorphous silicon thin-film transistor.

The TFT024B184 displays include a color TFT-LCD panel, driver IC, FPC, and a backlight unit. Available customized options include Resistive/Capacitive Touch Panel (RTP or CTP).

The TFT024B184 2.4″ TFT liquid crystal displays provide a module display area of 240 x 320 pixels.

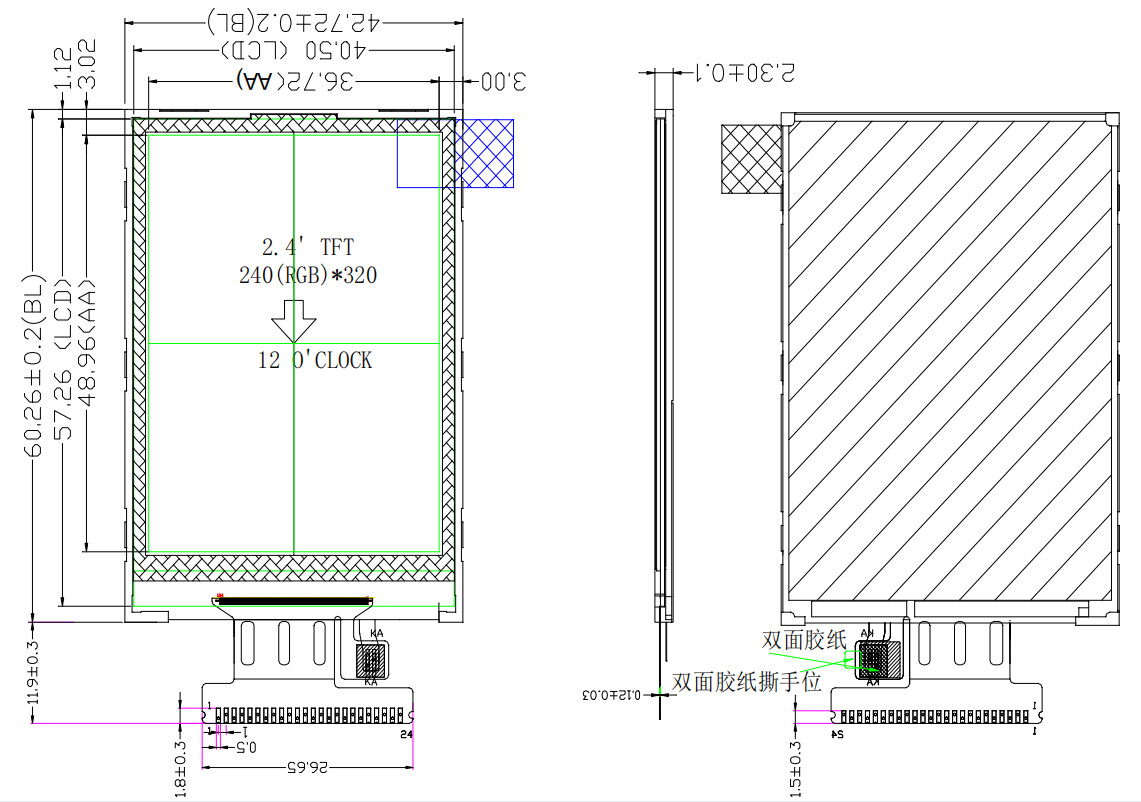

Mechanical Diagram

2.4 240x320 TN TFT QVGA ILI9340X 24 Pin MCU (2)

Pin Assignments

PIN No.	Symbol	Function
1	LEDK	Backlight cathode
2	LEDA	Backlight anode
3	GND	Ground
4	VDD	Analog Power Supply for LCM（2.8V）
5	IOVCC(1.8/2.8V)	Power supply(2.8V/1.8V)
6	TE	Tearing effect output signal
7	/CS	Chip select pin
8	/RSTB	Chip reset signal
9	RS	Register select signal. 0:index register; 1:data register。
10	WR	Write enable in MCU parallel interface
11	RD	Read enable in MCU parallel interface
12	DB7	data bus.
13	DB6	data bus.
14	DB5	data bus.
15	DB4	data bus.
16	DB3	data bus.
17	DB2	data bus.
18	DB1	data bus.
19	DB0	data bus.
20	GND	Ground
21	NC	NC
22	NC	NC
23	NC	NC
24	NC	NC
